With the continuous improvement of different voltage levels of distribution lines, the requirements for the performance index of WS type Socket clevis eye are getting higher and higher, so it is necessary to improve the design and research of Socket clevis eye to meet the rapid development of distribution lines.
WS type Socket clevis eye is an important part of the power construction, but also belongs to the power fittings in the connection of the fittings, in the power line used to connect the suspension clamp and suspension insulator, but also plays an important role in fixing the transmission line and insulation layer. Under relatively large working stress, its performance indicators are directly related to the safety of the distribution line, and the main reason for the rapid development of the power line is also the most important reason.

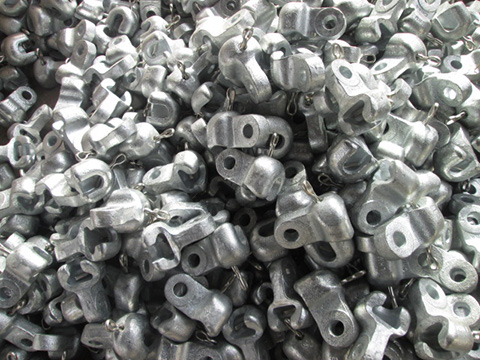

WS type Socket clevis eye is used to connect the steel foot of the lower end of the ball and socket type insulator, also known as the ball head, the bowl head hanging plate can be divided into single joint bowl head hanging plate and double joint bowl head hanging plate according to the different structure and applicable conditions, when the single string suspension suspension insulator is connected to the suspension clamp, the relatively short single joint bowl head hanging plate should be selected to shorten the total length of the suspension insulator. When a single string of tensioned insulator string is connected to a tensioned wire clip, a long size single coupling bowl head hanging plate should be selected to prevent the main board jumper of the tensioned wire clip from colliding with the porcelain skirt of the insulator. If a long size single coupling bowl head hanging plate can not meet the requirements, a shorter single coupling bowl head hanging plate should be selected, and then a mounting plate should be installed to increase the spacing.
