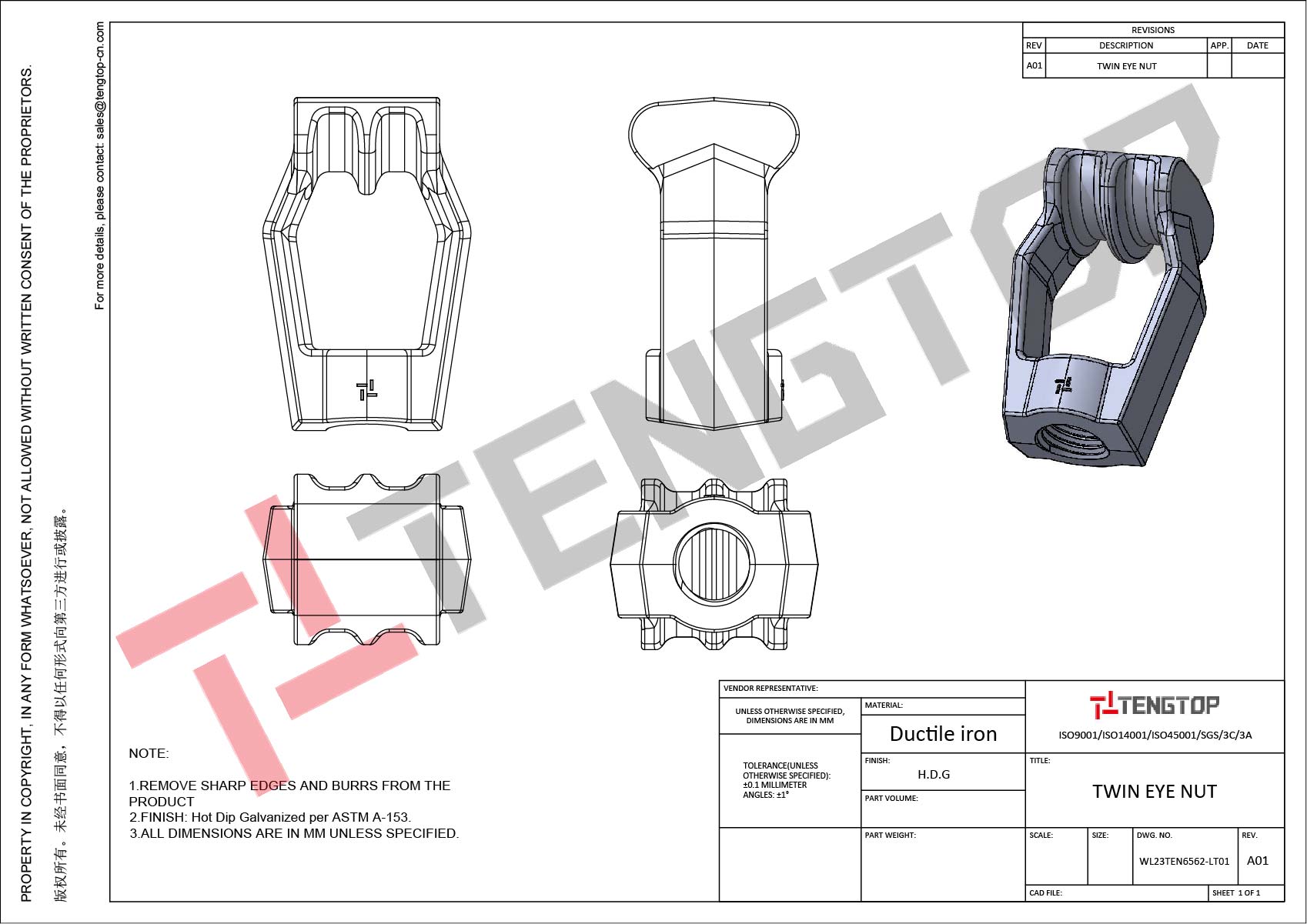

    THIMBLE EYE NUT-TWIN EYE
    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    PRODUCT NO.
    WL23TEN6562-LT01
    Get The Latest Quotes
    Application:

    The thimble eye nut is assembled with the thread end of eye bolt, which goes across the wooden pole for supporting the strain insulators to the dead end wire, the twin-eye nut is used with double guys.

    Features:

    Additional information

    Bolt Diameter:

    1”
    Strength Ratings:

    36000 lbs
    Material:

    Steel
    Finish:

    Hot Dip Galvanized per ASTM A-153
    Packing:

    Carton&Plywood Pallet/Crate
    CABLE VIBRATION DAMPER
    CABLE VIBRATION DAMPER
    Clamp Material:

    Aluminium Alloy
    Hammer Head Material:

    Grey Cast Iron,Painted
    Weight(kg):

    2.2-12.9
    Span:

    100m,150m,200m,300m,400m
    Packing:

    Carton & Plywood Pallet/Crate
    COMBINATION GUY ATTACHMENTS – 2
    COMBINATION GUY ATTACHMENTS – 2
    Material:

    Ductile iron, grade 654512
    Finish:

    Hot Dip Galvanized per ASTM A-153
    Maximum Strand Diameter:

    3/8"
    Strength Rating:

    15000lbs
    Packing:

    Carton&Plywood Pallet/Crate
    THIMBLE EYE NUT-TRIPLE EYE
    THIMBLE EYE NUT-TRIPLE EYE
    Bolt Diameter:

    1“
    Strength Ratings:

    36000 lbs
    Material:

    Steel
    Finish:

    Hot Dip Galvanized per ASTM A-153
    Packing:

    Carton&Plywood Pallet/Crate
