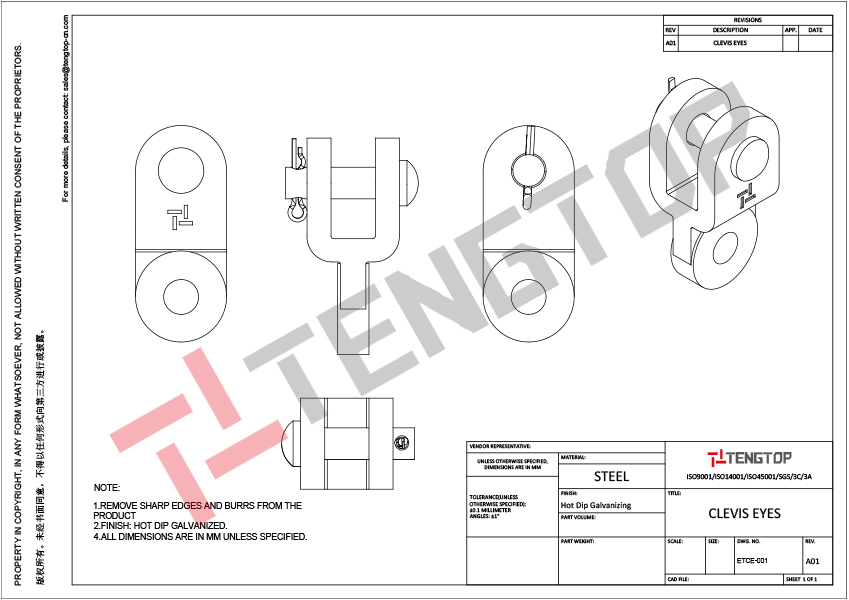

    CLEVIS EYES
    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    PRODUCT NO.
    ETCE-001
    Get The Latest Quotes
    Application:

    For connecting clevis tongue insulators to other associated tower hardware.

    Features:

    Additional information

    Material:

    Ductile iron, grade 654512.
    Clevis pins are C-1040 steel.
    Cotter pins are stainless steel.
    Finish:

    All parts, except cotter pins, hot dip galvanized per ASTM A-153.
    Ultimate Strength:

    20000 lbs
    Packing:

    Carton&Plywood Pallet/Crate
    THIMBLE EYE NUT-TWIN EYE
    THIMBLE EYE NUT-TWIN EYE
    Bolt Diameter:

    1”
    Strength Ratings:

    36000 lbs
    Material:

    Steel
    Finish:

    Hot Dip Galvanized per ASTM A-153
    Packing:

    Carton&Plywood Pallet/Crate
    QUADRANT STRAIN CLAMPS
    QUADRANT STRAIN CLAMPS
    Material:

    Clamp body and keeper are ductile iron, grade 654512.
    Clevis pins, u-bolts, nuts and washers are steel.
    Socket and clevis fittings are ductile iron, grade 654512.
    Cotter pins are stainless steel.
    Finish:

    All parts, except cotter pins, hot dip galvanized per ASTM A-153.
    Ultimate Strength:

    20000 lbs
    Packing:

    Carton&Plywood Pallet&Crate
    BOLT EYELETS
    BOLT EYELETS
    Material:

    Ductile iron, grade 654512.
    Finish:

    Hot Dip Galvanized per ASTM A-153.
    Bolt Diameter:

    3/4”
    Slot Size:

    13/16 x 1-1/8“
    Packing:

    Carton&Plywood Pallet/Crate
