    PRODUCT NO.
    ET24AGWD-BT01
    Get The Latest Quotes
    Application:

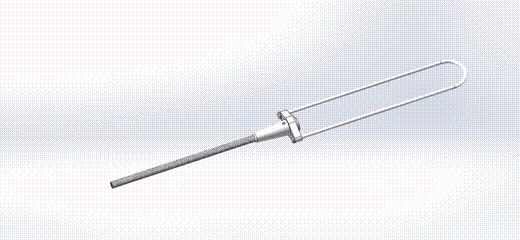

    Automatic guy wire deadend is a cone-shaped accessory that is usually positioned at the bottom of the transmission poles.  Here it connects with the down guy wire. Strand vise is also used on the overhead lines where it is connected to the dead-end applications. Its primary function is to terminate the guy wire and the overhead cable.

    Features:

    Additional information

    Material:

    Aluminum Alloy / Steel
    Material – Bail Stainless Steel
    Material – Jaw HS Plated Steel
    Material – Shell High Strength Aluminum Alloy
    Material – Yoke Aluminum Alloy
    Product Category:

    Guy Wire
    Packing:

    Carton & Plywood Pallet/Crate
    QUADRANT STRAIN CLAMPS
    QUADRANT STRAIN CLAMPS
    Material:

    Clamp body and keeper are ductile iron, grade 654512.
    Clevis pins, u-bolts, nuts and washers are steel.
    Socket and clevis fittings are ductile iron, grade 654512.
    Cotter pins are stainless steel.
    Finish:

    All parts, except cotter pins, hot dip galvanized per ASTM A-153.
    Ultimate Strength:

    20000 lbs
    Packing:

    Carton&Plywood Pallet&Crate
    THIMBLE EYE NUT-TWIN EYE
    THIMBLE EYE NUT-TWIN EYE
    Bolt Diameter:

    1”
    Strength Ratings:

    36000 lbs
    Material:

    Steel
    Finish:

    Hot Dip Galvanized per ASTM A-153
    Packing:

    Carton&Plywood Pallet/Crate
    POLE EYE PLATE
    POLE EYE PLATE
    Material:

    Ductile iron
    Finish:

    Hot Dip Galvanized per ASTM A-153
    Strength Rating:

    20,000 lbs. at 45 and 90 degrees
    Packing:

    Carton&Plywood Pallet/Crate
