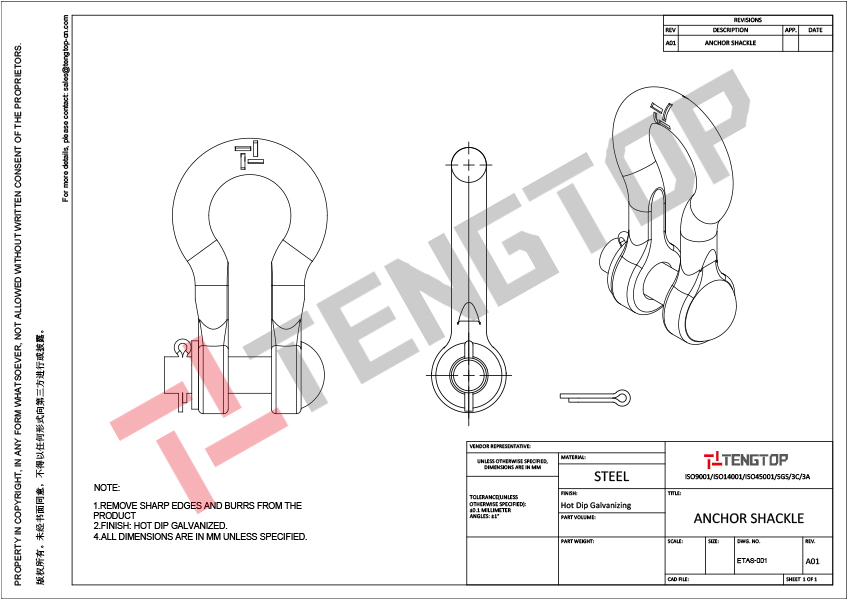

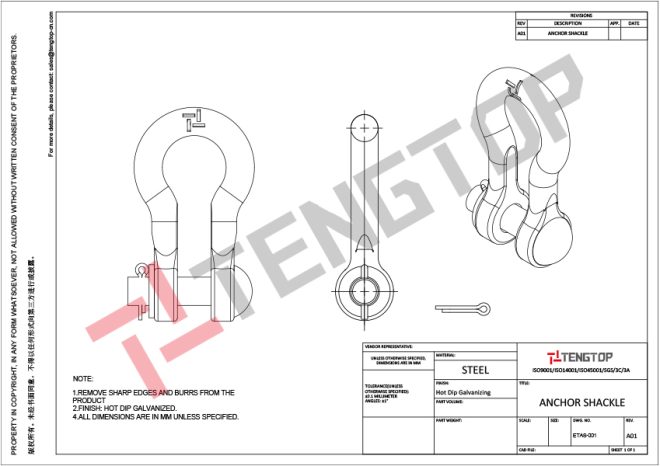

    PRODUCT NO.
    ETAS-001
    Get The Latest Quotes
    Application:

    For connecting associated hardware to the tower pad.

    Available with clevis pin and cotter key or clevis bolt, nut and cotter key.

    Features:

    Additional information

    Material:

    Forged steel.
    Clevis pins and clevis bolts are high strength steel.
    Cotter pins are stainless steel.
    Finish:

    All parts, except cotter pins, hot dip galvanized per ASTM A-153.
    Ultimate Strength:

    25000 lbs
    Packing:

    Carton&Plywood Pallet/Crate
    SOCKET EYES
    SOCKET EYES
    Material:

    Ductile iron, grade 654512.
    Clevis pins are C-1040 steel.
    Cotter pins are stainless steel.
    Finish:

    All parts, except cotter pins, hot dip galvanized per ASTM A-153.
    Ultimate Strength:

    18000 lbs
    Packing:

    Carton&Plywood Pallet&Crate
    SUSPENSION TRUNNION CLAMPS
    SUSPENSION TRUNNION CLAMPS
    Material:

    Body & Keeper are Ductile iron
    Hardwares are Steel
    Finish:

    All parts are hot dip galvanized per ASTM A-153
    Diameter Range:

    0.25''-1.26''
    Packing:

    Carton&Plywood Pallet/Crate
    COMBINATION GUY ATTACHMENTS
    COMBINATION GUY ATTACHMENTS
    Material:

    Ductile iron, grade 654512
    Finish:

    Hot Dip Galvanized per ASTM A-153
    Maximum Strand Diameter:

    3/8"
    Strength Rating:

    15000lbs
    Packing:

    Carton&Plywood Pallet/Crate
