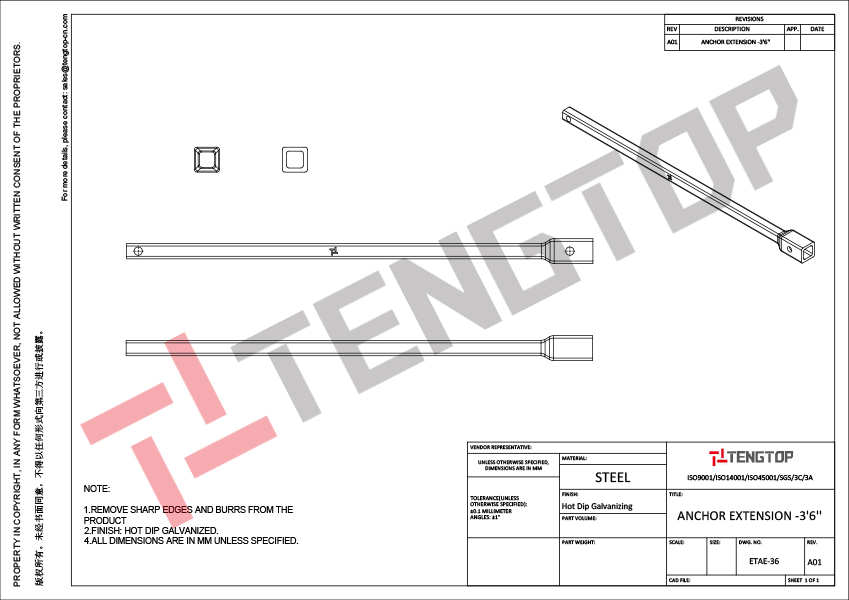

ANCHOR EXTENSION -3’6″
3D
2D
PRODUCT NO.
ETAE-36
Application:
The anchor extension is used to extend the pile length so that the Lead section is placed at the proper depth. The Helical Shaft system is used in applications where tension, compression or both types of structure loading is required. It provides a predicatable foundation solution for significat load capacities
Features:
Additional information
| Material: | Steel |
|---|---|
| Finish: | Hot Dip Galvanized as per ASTM A153 |
| Ultimate Strength: | 70,000lbs |
| Installation Torque: | 7,000 ft lbs |
